STP

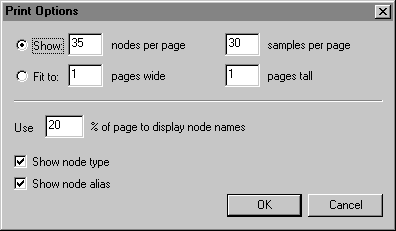

Print Options Dialog Box (SignalTap II Logic Analyzer)
NOTE You open this dialog box by clicking Options in the Print dialog box (File menu).

This dialog box allows you to set the print options for printing the waveform data in SignalTap II Files (.stp).

Pointer Click any item in this dialog box for information on that item:


Print Options ok cancel Show signal alias Show signal type Use % of page to display names Show signals, samples per page Fit to pages wide, pages tall



Back to Top
